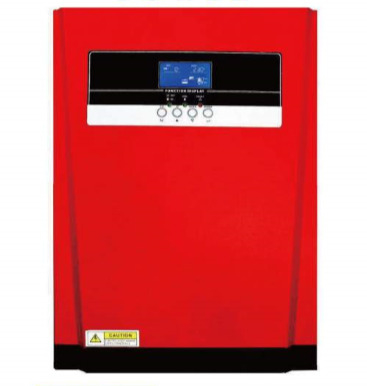

3.2KW 5KW Solar Inverter Off Grid Inverter With 80A MPPT Hybrid Solar Power Inverter WiFi Monitoring 100*300*440mm

Feature:

Integrates: high efficiency pure sine wave inverter(PF=1)

wide PV input range(120Vdc--500Vdc)80A MPPT SCC

intelligent 3 stage 80A AC battery charger

Surges to 2X continuous power for 5 seconds for motor loads.

Intelligent functionality enables utility and solar input prioritization.

Wide utility input range(90Vac--280Vac)for unreliable grid even in the most challenging environments.

Field serviceable with replacement boards and spare parts.

Monitor, troubleshoot, or communication with USB/RS232.

System configures quickly into compact, wall-mounted system.

Introduction:

The HY-NB series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business,

and it also delivers a value added,easy to install system that provides efficient power globally for every need.

Benefits Model:

It can be running without batteries,energy share from utility and solar to loads alternatively.

Without batteries, it can help to reduce the whole solar system cost and more importantly it can save electricity fee.

It combines a high PV input MPPT controller, it can convert solar energy from PV to loads directly and at the same time the remaining solar energy converted to batteries.

When PV output is reduce by cloud or at night, resulting in no surplus PV power available, loads powered by utility and batteries is charged, when utility outage, batteries discharged.
