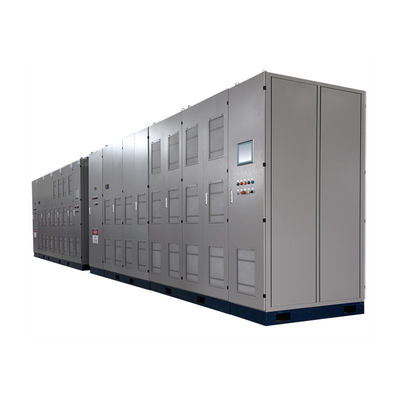

High Quality AMV-IV06-7000 6kv 7000kw Variable Speed ​​Drive 3 Phase 50hz/60hz 2.2*1.2*1.5m Adjustable-frequency Drive Inverter Control Panel

1 Unit
MOQ
High Quality AMV-IV06-7000 6kv 7000kw Variable Speed ​​Drive 3 Phase 50hz/60hz 2.2*1.2*1.5m Adjustable-frequency Drive Inverter Control Panel
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: AMVI
Type: AC/DC/AC
Output Type: Triple
Output Current: depend on power
Output Frequency: 50Hz/60Hz
Size: 2.2*1.2*1.5m
Weight: 800kg
Product name: Medium Voltage Drive
Rated power: 7000KW
Rated Voltage: 6kv
Topology of System: 13 cells per phase
Transformer: Phase-shifting transformer
Power Cell: Infineon
PLC: Included
DSP: TI Brand
Warranty: 18 Months
Auto Bypass: Optional
Βασικές πληροφορίες
Model Number: AMVI
Πληρωμής & Αποστολής Όροι
Packaging Details: Wooden Box Packing
Supply Ability: 100 Unit/Units per Month
Περιγραφή προϊόντων
Product Description
High Quality Variable Speed Drive AMV-IV06-7000 6kv 7000kw 3 Phase 50hz/60hz Adjustable-Frequency Drive Inverter Control Panel
Nanjing AUBO Electric Co., ltd is a manufacturer with nearly 20 years of manufacturing experience of the highest quality VFD, soft starter and other related automation products and solutions. The power range of our medium voltage VFD is from 200kw to 1000kw,the voltage is 3-10KV. The product uses multi-level technology and multiple IGBT power unit series superposition, and to achieve (perfect no harmonic) high-voltage output technology. In the use of obvious advantages, not only significant energy saving, but also improve the process, improve operation Quality, reduce production costs and other aspects of the enterprise for the great economic benefits.

Characteristic and advantage

Production capacity

More than 18 years of production experience

Core components
Choose global famous brand spare parts with reliable quality

Multiple protections
Nine protectiveness take care of your equipment

After sales service

Engineer on-site & online technical support

Product specification

MVD Item
AMV-IV～250～1500
AMV-IV～500～9800
AMV-IV～800～12500
Capacity of MVD（kVA）
250～1500
500～9800
800～12500
Apply motor Power（kW）
200～1250
400～7800
630～10000
Rated input Current（A）
50～300
50～960
50～780
Rated input Voltage（V）
3000±10%
6000±10%
10000±10%
Rated input frequency(Hz）
45～55
Input power factor
0.96(＞20% Load)
Effiency
Under Rated load＞0.95
Range of output frequency（Hz）
5～60(Other frequency should be stated before booking)
Output frequency resolution (Hz)
0.01
Overloading
120% anti-time limit of 1 minute, 150% immediate protection
Analog input
2 lines（0～10）V/(4～20)mA
Analog Output
4 lines（0～10）V/(4～20)mA
Acceleration time（s）
0.1～3000
Input/Ouput Switch Qty
Standard Setting: Input 6，output 6 lines; Can be options
Inner earthing Resistance（Ω）
＜0.1
Ambient（°C）
0～40 （°C）
Storage / transport temperature(°C)
-40～70（°C）
Cooling
Air Cooling
Running Decibel（dB）
≤85
Ambient humidity
＜90%，No Congeal
Install Altitude（m）
≤1000M，If more than 1000meter,need to booked.
IP Class
IP4X
Diameter Size（mm）
4800×2450×1300

200～630KW
6500×2450×1300

400～3250KW
7800×2450×1300

6300～5000KW
5600×2450×1300

630～1250KW
7800×2450×1300

3250～7800KW
10600×2480×1500

500～1000KW
Net Weight（kg）
3000～5000

200～630KW
6000～8000

400～3250KW
8000～14000

6300～5000KW
3500～6000

630～1250KW
10000～16000

3250～7800KW
15000～23000

5000～10000KW
Production Process

Production line

As a manufacturer with nearly 20 years of manufacturing experience, AUBO has a mature production process to provide you with the highest quality VFD, soft starter and other related automation products and solutions.

Strict factory test

Professional testing includes high and low temperature anti-aging, load testing, etc. to ensure the high quality of each of our products.

Product packaging
We use the safest packaging materials to protect every product, and the packaging meets the environmental requirements of export.
Certificate
We have CCC, CE, ISO9001 certificate, so you can choose our products without worry.
Product application

Our products can be used in different industries to provide energy savings, improve process flow and improve motor life

Customer feedback

Company Description

Company Profile
Nanjing Aubo Electric Co.,ltd. was established in July 2001 with registered capital about 11.6 million dollars. Our production base is located in the beautiful Luhe district of Nanjing city covering an area of 13,334 square meters and we also have two branch offices in Nanjing and Shanghai. The production base has nearly 100 production personnel, ten engineers and 12 domestic and export sales.

Team introduction

The core of AUBO's philosophy has always been the unique concern on customers and employees. All employees of AUBO are totally dedicated to customer service. You'll find them to be the finest professionals among the suppliers you have found!

Young AUBO team never stop our growth, never stop our creation, and never stop our imagination!

Currently AUBO has more than 50 buyers from 15 countries. The origin of buyers is evenly spread across the world.

Customer relationship

AUBO attaches great importance to customer relationship maintenance. We warmly welcome customers at home and abroad to visit our factory, and also actively visit overseas customers and participate in industry exhibitions around the world.

Global partners: AUBO seeks global partners - exclusive agents/ branches were needed. Pls click following button to submit your global partner application.

FAQ
1. What is the scope of your product? We mainly produce low/high voltage VFD, soft starter, and different control cabinets. We also can provide a full range of industrial automation solutions. 2.Are you a manufacturer? Yes, we are a manufacturer since 2001 3.What is your payment method? T/T,L/C,WESTERN UNION,PAYPAL 4.Do you supply OEM? Yes, we could supply OEM. 5.Can you provide sample? Yes, we can, but sample is not free 6.What is your MOQ? First sample order: MOQ 1 set Second order: MOQ 5 sets or $500 7.Is there any discount? If you have big quantity, you could contact with us, we will check with your exact quantity 8.What is the delivery time? Sample order, low voltage product:3-7days. Medium voltage:6-8 weeks 9.What is the standard of package? Export standard package or special package according to your requirement 10.What kind of certificate you have? We have CE,ISO9001,CCC
