Name: high frequency pure sine wave inverter 8000w 48V 220v to inverter 605*199*146mm
Brand: high frequency pure sine wave inverter 8000w 48V 220v to inverter 605*199*146mm
SKU: MLP-8000W
Rating: 4.8 (131 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Network: SDK

Customized support: Software reengineering

Model Number: MLP-8000W

Type: DC/AC Inverters

Output Type: Single

Output Current: 36A

Output Frequency: 50Hz/60Hz

Size: 605*199*146mm

Weight: 17.0KG

Certificate: CE ROHS

Terms: FOB

Start Way: Soft-start

Efficiency: 90%~95%

Grid type: Off-grid

Power: 8000W

Peak power: 16000W(5ms)

Waveform: Pure sine wave

Sockets: All kinds

Warranty: 2 year

OEM: OEM Accepted

Βασικές πληροφορίες

Πιστοποίηση: CE ROHS

Model Number: MLP-8000W

Πληρωμής & Αποστολής Όροι

Packaging Details: Packaging Detail: 1 piece per carton, 8000w 48vdc to 220vac inverter solar with bubble bag and foam protection

Supply Ability: 2000 Piece/Pieces per Month 48v 220v inverter

Περιγραφή προϊόντων

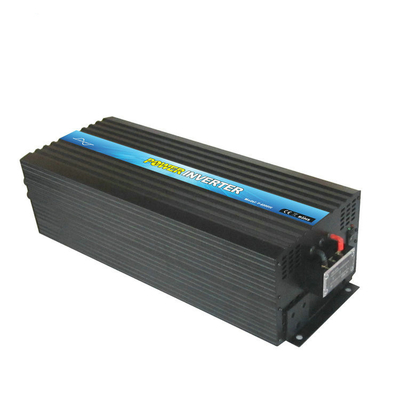

High Frequency Passpower Pure Sine Wave Inverter 8000w 48V to 220v Inverter 8kw for Heavy Duty sensitive electronic loads

Product Description

Product descriptions

Passpower provides high quality inverters. This heavy duty inverter provides 8000W continuous power and 16,000W peak power,featuring 2pcs or 4pcs AC outlets and cable
Wide Applications: The inverters can be applied to RV,Truck,Car and Solar System
Isolated Input and Output Design,Big and Durable aluminum alloy housing provides advanced protection from drops and bumps.Intelligent cooling fan helps reduce heat and prevents shortages.
Soft Start Tech and Fully Safety Protections:Over voltage,Low voltage,Overload,Short circuit,Over heat,polarity reverse protection(fuse) and Soft start tech,Auto-restart function
Warranty :12 Months provided by passpower

Product features

1. Pure sine wave output waveform,

2. Soft-start function,

3. Strong adaptability and stability,

4. Safe and reliable with built in fuse,

5. Max efficiency: >90%

6. Power ON-OFF switch

7. THD: <3%

8. Input & output voltage totally isolated

9. High quality (CE RoHS IP30 SGS GMC approved)

10. Thermo control cooling fan

11. Two-color indicators display power and fault status

12. Full power:The working power of 8000w inverters is enough 8000w.

13. Saving-energy

14. Built-in high speed cooling fan

15.Outside aluminum alloy shell ,good to therming dissipine to esure the woking life more long than others

16. Protection functions

Product datasheet

Model	P8000-48-220
Power	8000W
Peak Power	16000W(within 5 millisecond)
DC Input Voltage	48V
AC Output Voltage	220VAC±5%
No-load Current	<2A(DC52)
AC Output Frequency	50HZ±1%/60HZ±1%
Output waveform	pure sine wave
Wave Distortion	THD<3%
Full Load Efficiency	>90%(DC52V)
DC Input Voltage Range	44V~62V
Lower Voltage Alarm	44±0.5V
Lower Voltage Shutoff	42±0.5V
Higher Voltage Shutoff	62±0.5V
Lower Voltage Recovery	49.6±0.3V
Higher Voltage Recovery	61.8±0.5V
Over-load Shutoff	111%~113%
Protect Function	Lower voltage:Red LED light on; the buzzer alarms; the inverter recovers to be normal automatically
	Higher Voltage:Red LED light on;the inverter recovers to be normal automatically
	Over-load:Red LED light on;the inverter recovers to be normal automatically
	Over-Temperature:Red LED light on; the buzzer alarms; the inverter recovers to be normal automatically
	Short-Circuit(within 2 seconds):the inverter recovers to be normal automatically
	The anode and the cathode are connected in the wrong way: the fuse blowouts
Operating Temperature	–10℃- +50℃
Storage Temperature	–30- +70℃
Humidity	20%~90%RH without condensation
Operating Altitude	<1200m
Net Size	605199146mm
Net Weight	16.9±0.07kg
Packaging Size	720285240mm(1pc)
Gross Weight	21.00KGS

Product detailed photos

AC available sockets and plugs for Passpower inverter 48v dc to 220v ac 8000W

Socket type :(When you make order, please let me know your choose: socket type, Output AC

voltage and Input DC voltage, thanks!)

Application for 48V 220V 8000W high frequency pure sine wave inverter

(1). In-car devices series: military vehicle, police cars, medical ambulance.

(2). Industry equipments series: solar energy, wind power, gas discharge lamp.
(3). Office area: Computer, printer, copier, scanner, digital camera and etc.
(4). Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator.

(5). House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps.
(6). Power tool series: lighting, fans,electric saw, drilling machine, punching machines.

Packaging & Shipping

Package for 48v dc to 220v ac 8000w Power pure sine wave Inversor

Packing method: by standard carton box,with bubbles outside and foams inside for protection

Packing size: 1PC in one Carton; 66cm x 27cm x 22cm; Packing weight:21.00kg/pc

Shipping Terms:

1) International Express: FedEx/DHL/UPS/TNT/EMS etc.

2) FOB Shanghai, Ningbo or Shenzhen Sea Port China.

EXW/CIF/CFR

Delivery goods with 7-30 days after receive the deposit for bulk order, sample order:2-3 days
