Model	SUN-3.6K-SG03LP1-EU	SUN-5K-SG03LP1-EU	SUN-6K-SG03LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	90A	120A	135A
Max. Discharging Current (A)	90A	120A	135A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	4680W	6500W	7800W
PV Input Voltage (V)	370V (125V~500V)
MPPT Range (V)	150~425V
Full Load DC Voltage Range	300~425V
Start-up Voltage (V)	125V
PV Input Current (A)	13A+13A
Max. PV ISC (A)	17A+17A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1
AC Output Data
Rated AC Output and UPS Power (W)	3600W	5000W	6000W
Max. AC Output Power (W)	3690W	5500W	6600W
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	16.4A	22.7A	27.3A
Max. AC Current (A)	18A	25A	30A
Max. Continuous AC Passthrough (A)	35A			40A
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 220/230 / 240Vac (single phase)
Grid Type	Single Phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	99.90%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC Type II / AC Type Ⅲ
Certifications and Standards
Grid Regulation	VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3: 2019-05
Safety Regulation	IEC62109-1, IEC62109-2
EMC	EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range (℃)	-25~60℃, >45℃ Derating
Cooling	Smart cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	20.5
Size (mm)	330W×580H×232D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

Questions from our clients:

1.Do you offer sample for testing purpose?

Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.
Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request.
Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week.
For bulk orders, dates may vary depending on quantity.

Solar water pump IP65 motor speed controller mppt dc frequency inverter 250160175mm--1556786988mm

Hotel RMRB 8.2kw R32 A+++ Heating Cooling& Domestic Hot Water All In One DC -35C Inverter Air Source Heat Pump Workable

Cheap Professional Manufacture PLD-2S-2.2 AC Inverter Water Pump Controller L:26.5cm W:25cm H:16cm

Case 5KW Huawei AC 750W 110KW Inverter China Wholesale 220V 380V AC High Frequency Converter 1 Customized Shell Motor Gray 167.5185.880mm

Factory Multifunctional CE Approved 18.5kw 3 pH 380V Off Grid Solar Pump Frequency Inverter For Irrigation

3.2KW 5KW Solar Inverter Off Grid Inverter With 80A MPPT Hybrid Solar Power Inverter WiFi Monitoring 100300440mm

Industrial Equipment Ect 18.5kw 110kw Frequency Inverter 11kw Vfd AC Drive For Elevator Original

Control Powtran OEM Customization Frequency Motor Speed Inverter Integrated Cabinet

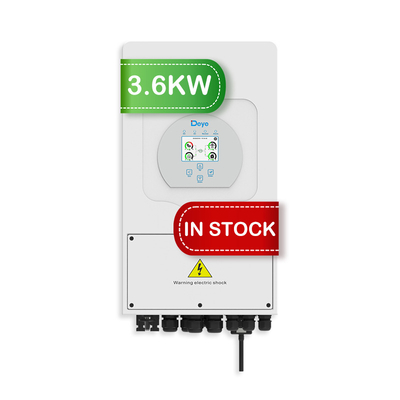

Deye Wall Mounted Solar Hybrid Inverter SUN-3.6K-SG03LP1-EU 3.6kw 5kw 6kw DC To AC On Off Grid Tie System Hybrid Solar Inverters
