Αρχική Σελίδα /Προϊόντα/Μετατροπέας συχνότητας κινητήρα/Wholesale High Quality Home Solar Power System Smart Mppt 6kw On Grid Solar Hybrid Inverter Hybrid Solar Inverter

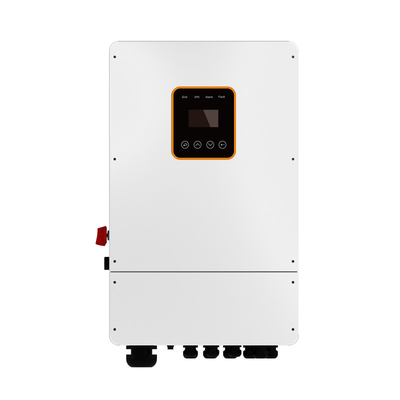

Wholesale High Quality Home Solar Power System Smart Mppt 6kw On Grid Solar Hybrid Inverter Hybrid Solar Inverter

1.0 piece
MOQ
Wholesale High Quality Home Solar Power System Smart Mppt 6kw On Grid Solar Hybrid Inverter Hybrid Solar Inverter
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: AL-R6KINA
Input Voltage: 120~500V
Output Voltage: 230Vac, Single Phase 230V
Output Current: 28.8
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 430*220*710
Type: DC/AC Inverters
Inverter Efficiency: 97.6, 97.6%
Certificate: CE/RHOS/IEC
Warranty: 12 months
Weight: 41KG
Product name: on/off grid hybrid Inverter
Application: Solar Power System Home
Inverter type: High Frequency Inverter
Output waveform: Pure Sine Wave Output
Efficiency: 97.6%
Battery Voltage: 40~58
Ingress Protection: IP65
Protection: Short Circuit Overload Overvolt Overtemp
Βασικές πληροφορίες
Πιστοποίηση: CE/RHOS/IEC
Model Number: AL-R6KINA
Πληρωμής & Αποστολής Όροι
Packaging Details: STANDARD EXPORT CARTON
Supply Ability: 10000 Piece/Pieces per Month
Περιγραφή προϊόντων
Product Description
Technical Specification
Model
AL-R5KLNA
AL-R6KLNA
AL-R8KLNA
AL-R10KLNA
Input (PV)
Max.Power(kW)
7.5
9
12
13
Max. DC Voltage (V)
500
MPPT Voltage Range(V)
120~500
Max.Input current Of Single MPPT(A)
12
MPPT Tracker/Strings
4/1
AC Output
Rated Output Power(kVA)
5
6
8
10
Max. Output Current(A)
24
28.8
38.3
47.8
Ac Output Voltage(V)
120/240(split phase), 208(2/3 phase),230 (single phase)
Frequency (Hz)
50/60
PF
0.8lagging-0.8leading
THDi
< 3%
AC Output Topology
Split phase, 2/3 phase, single phase
Battery
Battery Voltage Range(V)
40~58
Max. Charging Voltage(V)
58
Max. Charge/Discharge Current(A)
120/120
135/135
190/190
210/210
Battery Type
lithium /Lead-acid
Communication Interface
CAN/RS485
EPS output
Rated Power(kVA)
5
6 8
10
Rated Output Voltage(V)
120/240 (split phase), 208 (2/3 phase),230 (single phase)
Rated Output Current(A)
24
28.8
38.3
47.8
Rated Frequency(Hz)
50/60
Automatic Switching Time(ms)
＜20
THDu
< 2%
Overload Capacity
125%,60S/150%,1S
Shenzhen zhongguanda Technology Co., Ltd is a national high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage inverter related products. The company was founded in 2013 and is headquartered in Guangming District, Shenzhen. The core team of the company is composed of leading technical talents and senior experts in power electronics.
With the vision of "making energy more efficient and cleaner", ZGD provides customers with standardized energy storage inverter products, customized solutions and OEM services. ZGD's inverter products cover four major application scenarios: residential energy storage, C&I energy storage, microgrid and grid-side energy storage, including small-scale residential ESS on/off-grid inverters, microgrid PV+ESS integrated machines, medium and high-power PCS and unique products specially designed for North American and European markets. The related products have been certified by CGC, CE, TUV, CSA, UL, G99, NRS, SAA and European certifications such as UK, Italy and Poland.
To date, ZGD has provided products and services to 200+ outstanding companies worldwide, with 1GW of energy storage inverters delivered and inverters shipped to 22 countries worldwide.
